Ball valves
Ball valves
Design & Port Configurations
HOFMAN HVF-LOK instrumentation ball valves feature precision two-piece and three-piece body designs, including two-piece hex body options engineered to minimize potential leak paths. Available in 2-way and 3-way flow patterns with T-port and L-port configurations, these valves accommodate versatile directional flow control and fluid routing requirements alongside our instrumentation needle valves for fine throttling service. The floating ball design utilizes downstream line pressure to dynamically load against the seat, ensuring positive leak-proof shut-off during high-pressure service.
Pressure Ratings & Seat Materials
Hofman HVF-LOK instrumentation ball valves are manufactured in sizes ranging from 1/8″ to 1″ with working pressure ratings of 2,000 psi (138 bar), 6,000 psi (414 bar), and up to 10,000 psig (689 bar). Standard construction utilizes SS316L stainless steel, with Super Duplex, Monel, and Inconel 625/825 available for severe service. Every valve undergoes 100% factory hydrostatic pressure testing, provides full heat code traceability (EN 10204 3.1 MTRs), and is available with Delrin, PTFE, PEEK, or KEL-F seats.

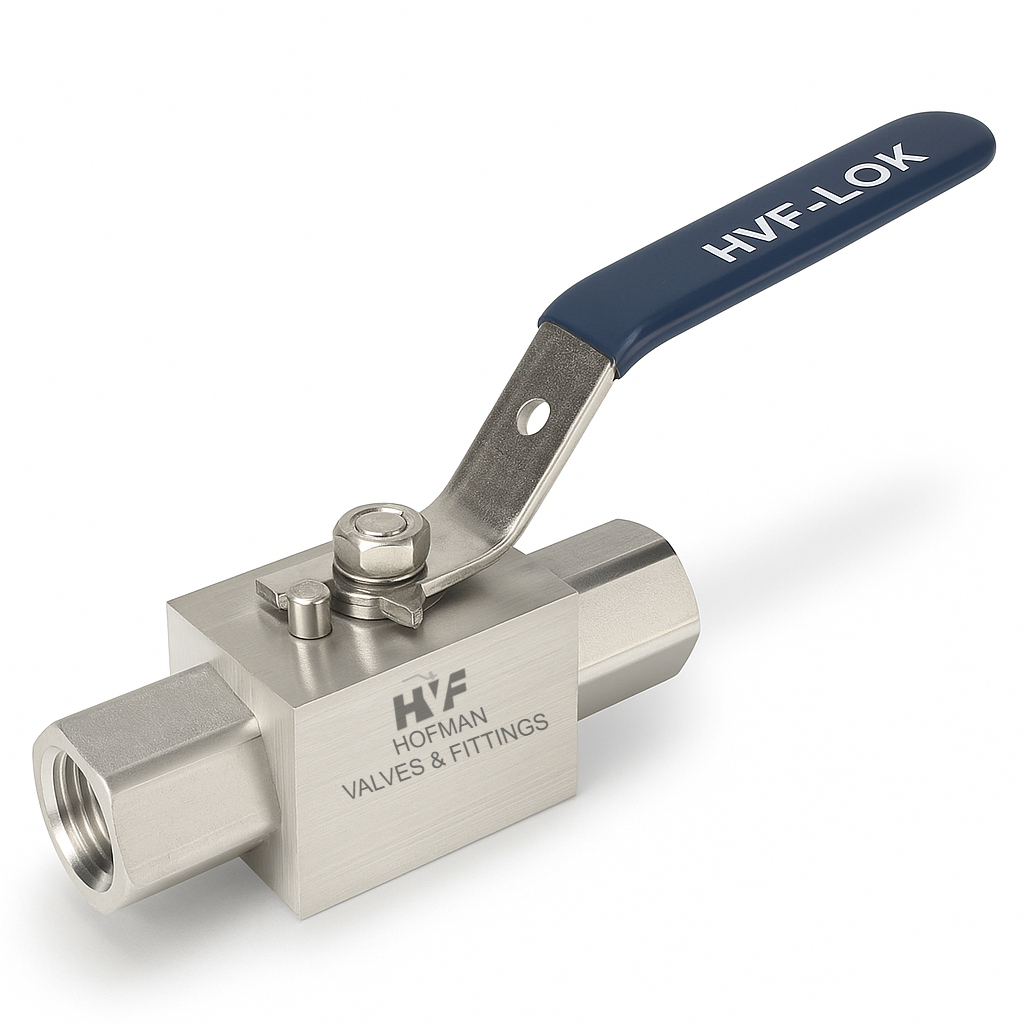

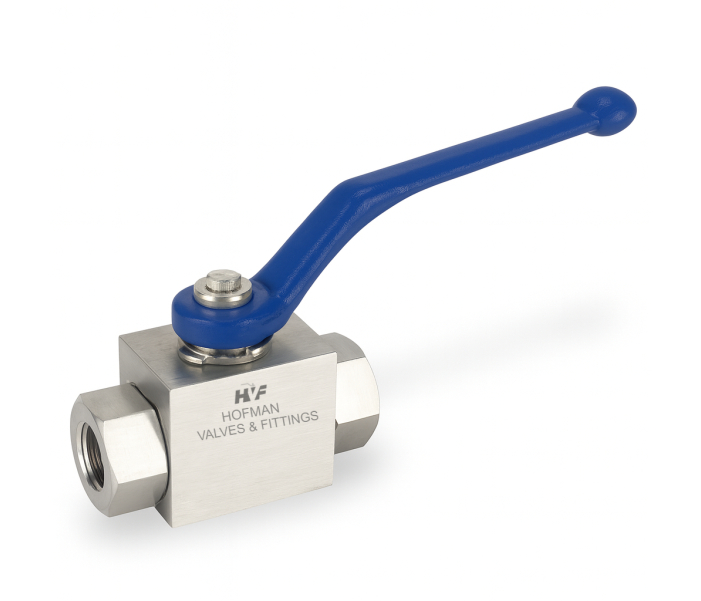

- HOFMAN Ball Valves are available in 2 and 3 piece design.
- Ball Valves are available in 2 and 3 T port & L port configurations.

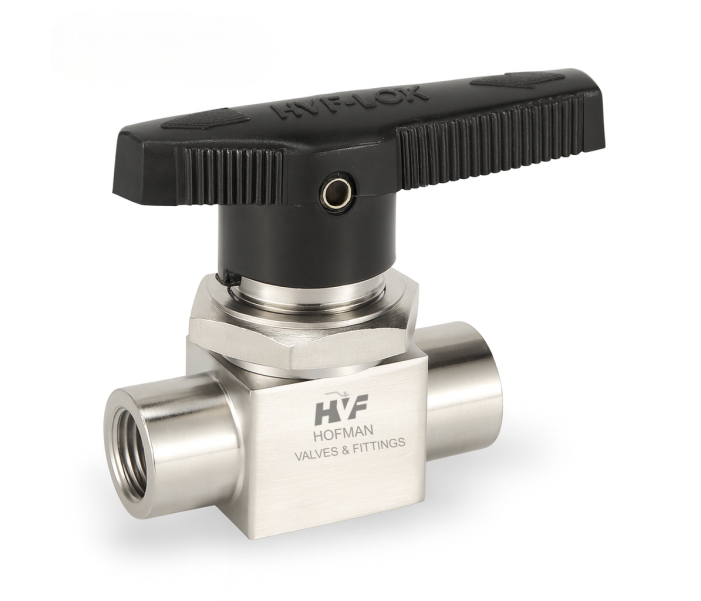

- Hex Body Ball Valves are available in Two-Piece Design for minimizing the leakage.
- Available in material SS316L. Other Materials such as SS304, Super Duplex, Monel, Inconel 625/825 Etc. are available on request.

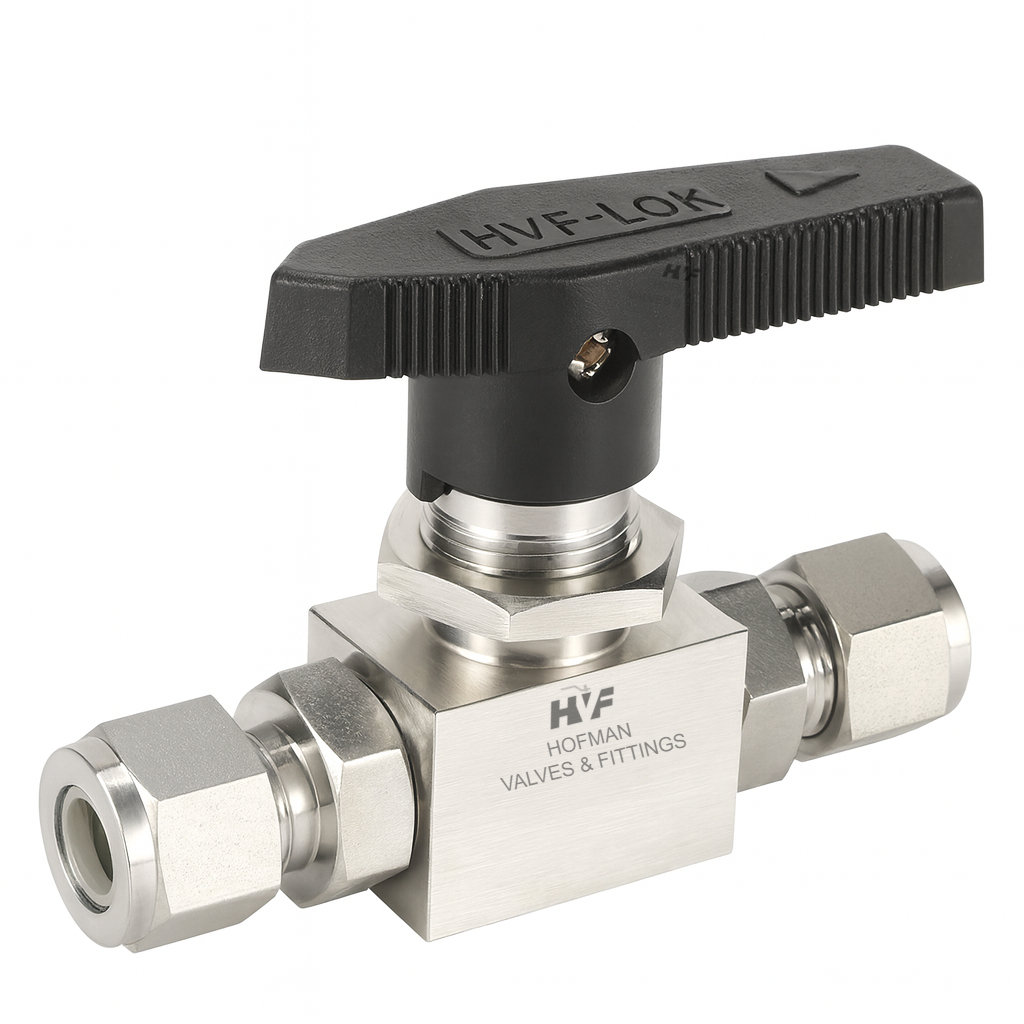

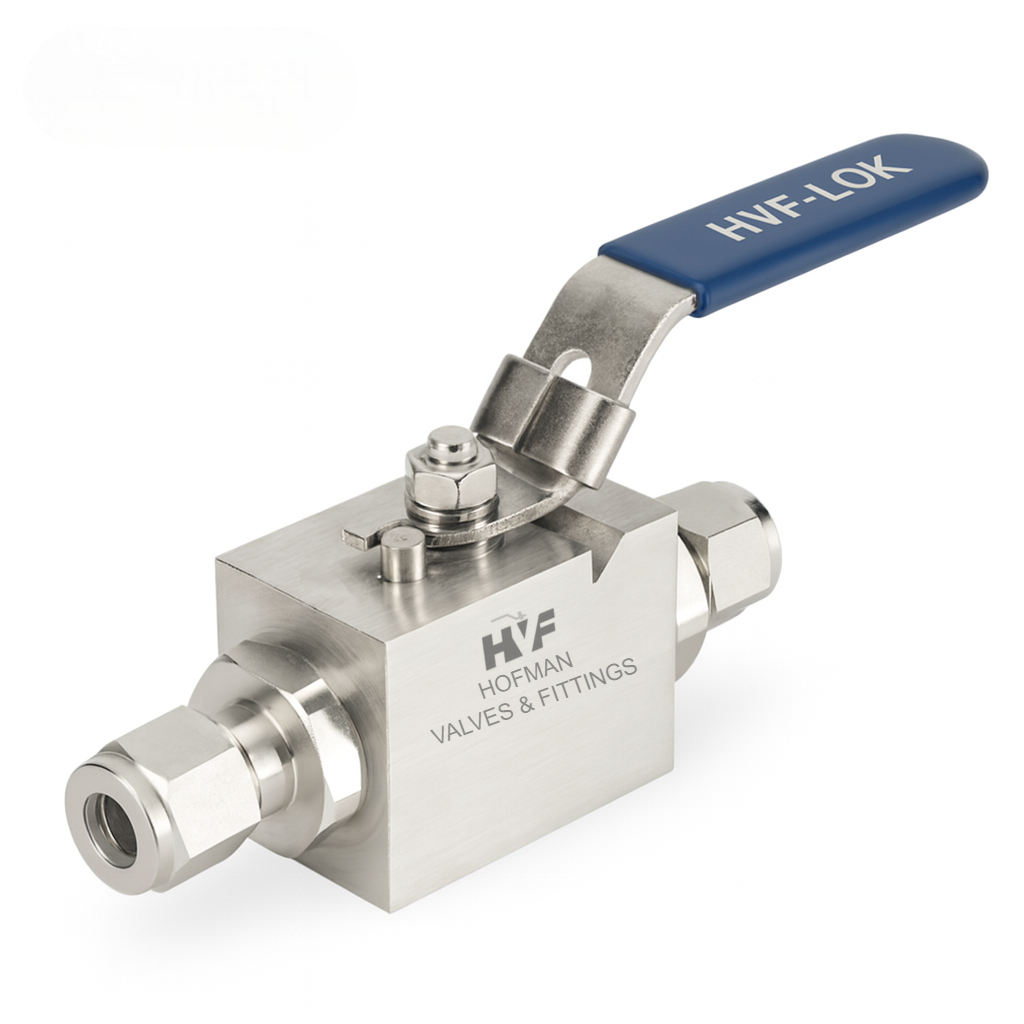

- Variety of end connections – Male & Female NPT, BSPP, BSPT. & HOFMAN tube fittings.
- Working pressure 2000 psi (138 bar), 6000 psi (414 bar) & 10,000 psig. (689 bar).
- Floating ball design ensures leak proof shut-off at high pressure.
- Size ranging from 1/8″ to 1″.
- Delrin, PTFE, PEEK & KEL-F seat available.
- Anti blow out internally loaded stem for safety.
- Panel mount and lacking handle option available.
- All the Valves are 100% Factory Tested.
- Heat code traceability.
- Brand-HVF-LOK.
