Bleed Valves
Bleed Valves
Function & Design

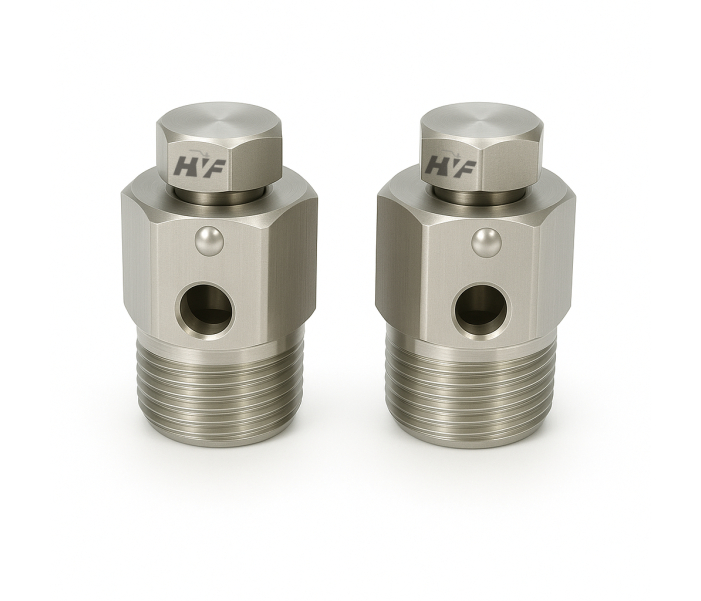

HOFMAN HVF-LOK compact bleed valves are engineered to vent signal line pressure and safely direct excess liquid or gas away from instrument systems prior to maintenance or removal. Featuring an orifice size of 0.125" (3.20mm) with a flow coefficient (Cv) of 0.25, the integral vent tube design prevents accidental stem disengagement during venting operations.
Pressure Ratings & Materials
- Available in material SS316
- Heat Code Traceable to certified material test report
- Compact and convenient installation
- Vent tube design prevents accidental removal of the stem
- Vent tube directs excess liquid or gas from system line
- Flow coefficient (Cv) 0.25
- Orifice size 0.125" (3.20mm)
- Variety of end configurations includes HOFMAN Tube Fittings Male/Female NPT and SAE pipe connections
- Every valve is factory tested.
- Convenient installation.
- Working pressures up to 10000 psig
- Heat code traceability.
- Brand-HVF-LOK.
