Manifolds Valves
Manifold Valves
Configurations

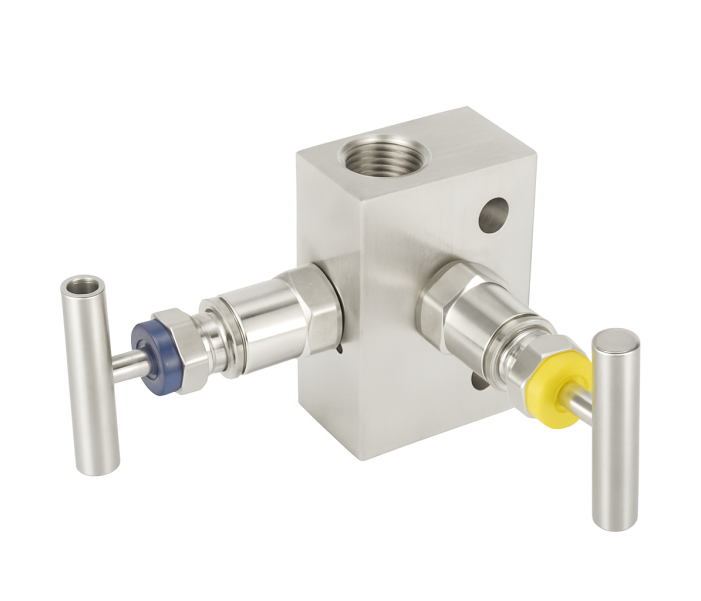

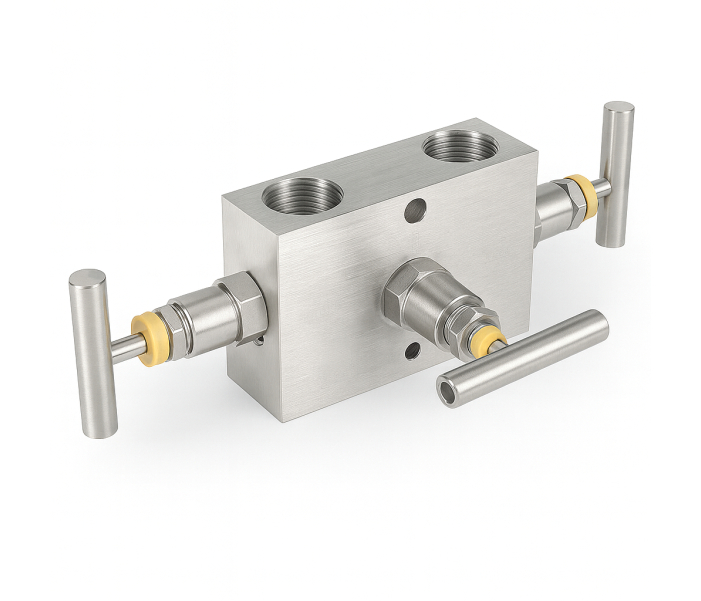

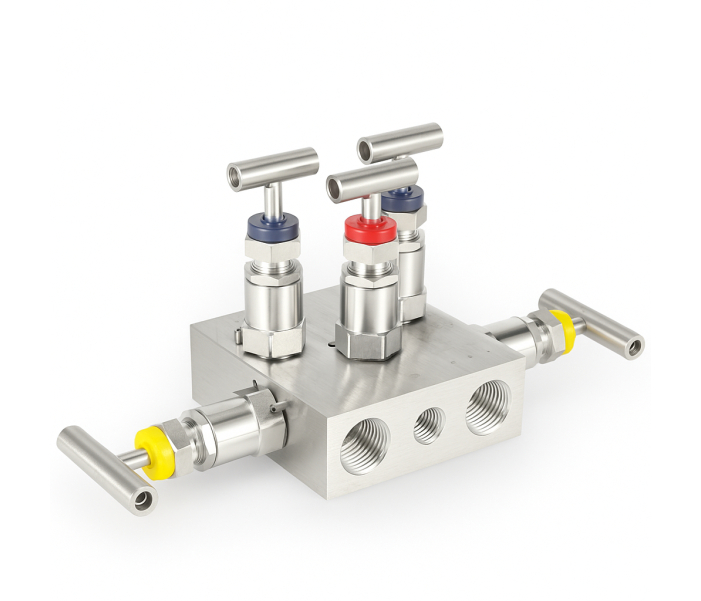

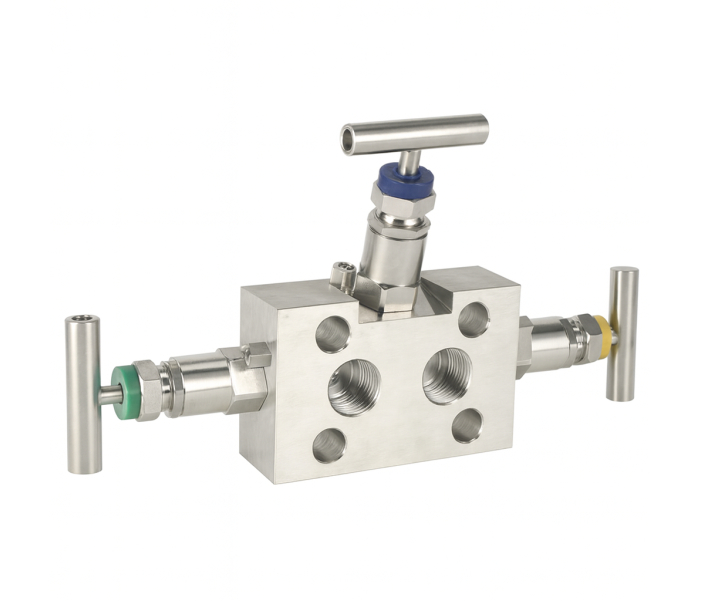

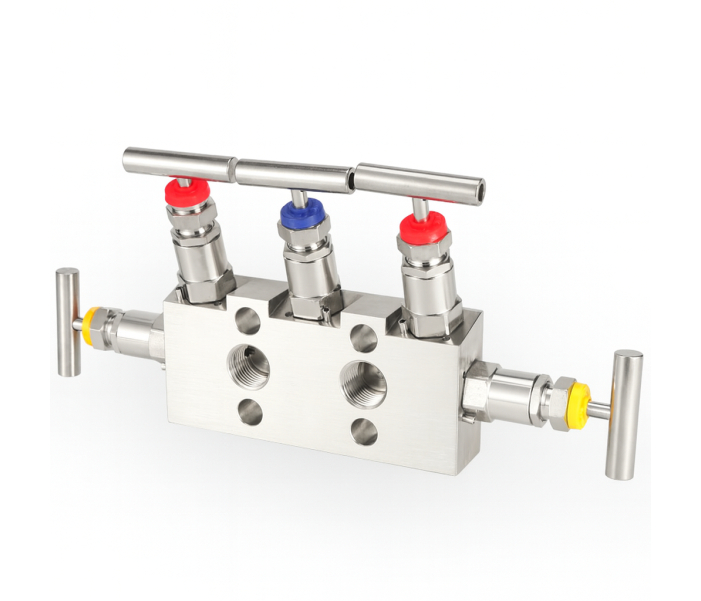

HOFMAN HVF-LOK instrumentation manifold valves are available in 2-way, 3-way, and 5-way valve configurations engineered for precise isolation, equalization, and calibration of pressure and differential-pressure instruments. These manifolds are supplied in pipe-to-pipe, pipe-to-flange, and flange-to-flange mounting arrangements to suit system piping layouts. Utilizing non-rotating Vee-tip or ball-tip valve stems, they deliver dependable, bubble-tight shut-off across all instrument ports.
Specifications
- HOFMAN Manifolds Valves available with 2, 3 and 5 Way Valve configurations
- Available in material SS316L. Other Materials such as SS304, Super Duplex, Monel, Inconel 625/825 Etc. are available on request.
- Available in various configuration such as pipe to pipe, pipe to flange and flange to flange.
- Maximum working pressure up to 10,000 psig. (689 bar).
- PTFE standard gland packing, Alternate Graphoil packing for high temperature. Max. temperature upto 538°C (1000°F).
- Non-Rotating Vee-tip / Ball tip provides repetitive & leak tight shut-off.
- All the Valves are 100% Factory Tested
- Heat code traceability.
- Brand-HVF-LOK.
