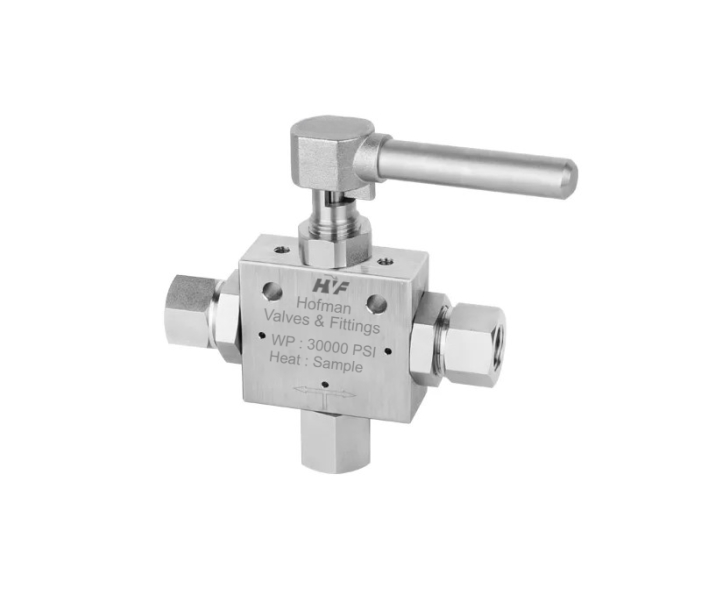

Autoclave High Pressure Valves (30000 PSI)
Autoclave High Pressure Valves (30000 PSI)
Technical Specifications
HOFMAN HVF-LOK autoclave high pressure valves encompass precision needle, ball, and check valves rated for demanding working pressures up to 30,000 psi. Designed with 1/4", 3/8", and 9/16" cone and thread connections, these valves undergo rigorous testing up to 33,000 psi hydrostatic seat test pressure and 45,000 psi hydrostatic shell test pressure. Available in straight and angle patterns with screwed bonnet or replaceable seat options, they deliver dependable flow control in extreme high-pressure services when paired with our matching high pressure fittings and accessories.
Materials & Testing
- High pressure Needle, Ball and Check Valves up to 30000psi working pressure.
- Screwed bonnet Needle Valves along with Integral seat.
- Testing Pressure :
Hydrostatic Seat : 33000psi
Hydrostatic Shell: 45000psi
Pneumatic Seat : 1000psi - Available in Straight and Angle Patterns.
- Optional replaceable seat design.
- Available in Two-Way and Three-Way configurations.
- Connection sizes: 1/4”, 3/8” and 9/16” cone & thread.
- Available in material SS316L. Other Materials such as SS304, Super Duplex, Monel, Inconel 625/825 Etc. are available on request.
- High pressure pipe fittings and accessories also provided including Glands, Collars,
- Nipples, Adaptors and Tubes
- All the Valves are 100% Factory Tested
- Heat code traceability.
- Brand-HVF-LOK.
