37° Flared Fittings
37° Flared Fittings
Design & Application

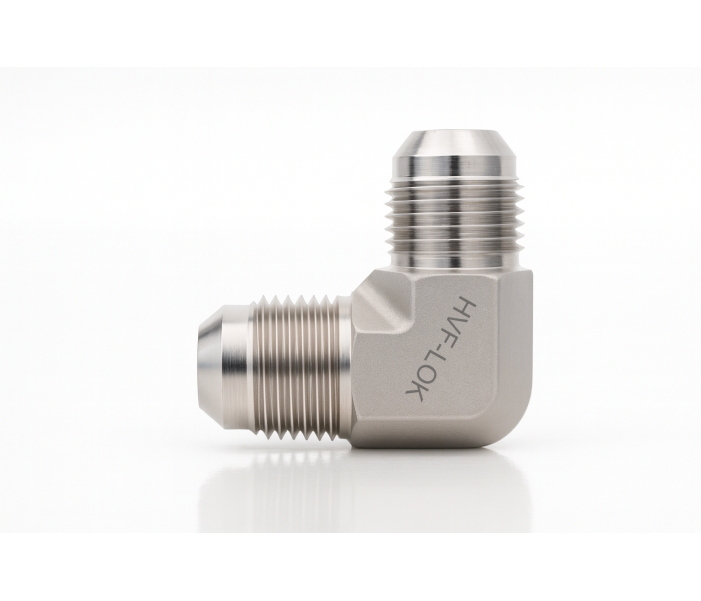

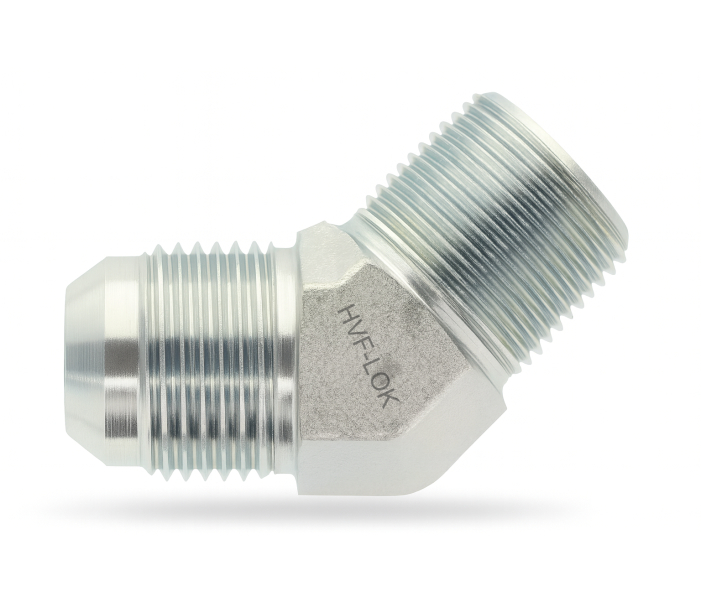

HOFMAN HVF-LOK 37° flared tube fittings feature a precision-machined 37-degree cone seal and JIC swivel connections designed for full-flow, zero-leak operation in heavy-duty hydraulic systems. Compatible with both metric and fractional tubing as well as hose connections, these metal-to-metal seating fittings provide high vibration resistance and reliable re-usability. Engineered for demanding fluid power lines, they deliver dependable sealing performance up to 10,000 psig (689 bar).
Sizes & Pressure Ratings
- HOFMAN Flare Fittings are available in material SS316L. Other Materials such as SS304, Super Duplex, Monel, Inconel 625/825 Etc. are available on request.
- Variety of end connections, Male & Female NPT, BSPP, BSPT, 37° Flare, Swivel & JIC Swivel.
- The 37 degree flared fittings are designed with a full flow zero leak feature connection in the hydraulic system.
- Maximum working pressure up to 10,000 psig. (689 bar).
- Size ranging from 1/16″ to 2”.
- Usable with Metric or Fractional Tubes.
- Usable Hose Connection.
- Heat code traceability.
- Brand-HVF-LOK.
